Working in the graph

Everything here works with the mouse, and every gesture rewrites your .weft file. The two panes are one file, so nothing you do on the canvas is stored in a second place that could disagree with your source.

Getting around

Scroll to move around. Drag empty canvas to move around faster. Zoom is the + and - buttons at the bottom left, with Fit View beside them for when you drag something into the distance and lose it. Scrolling does not zoom, on purpose, so a stray trackpad gesture cannot throw your whole graph off screen.

Hold Shift and drag to select several boxes at once.

Add a step

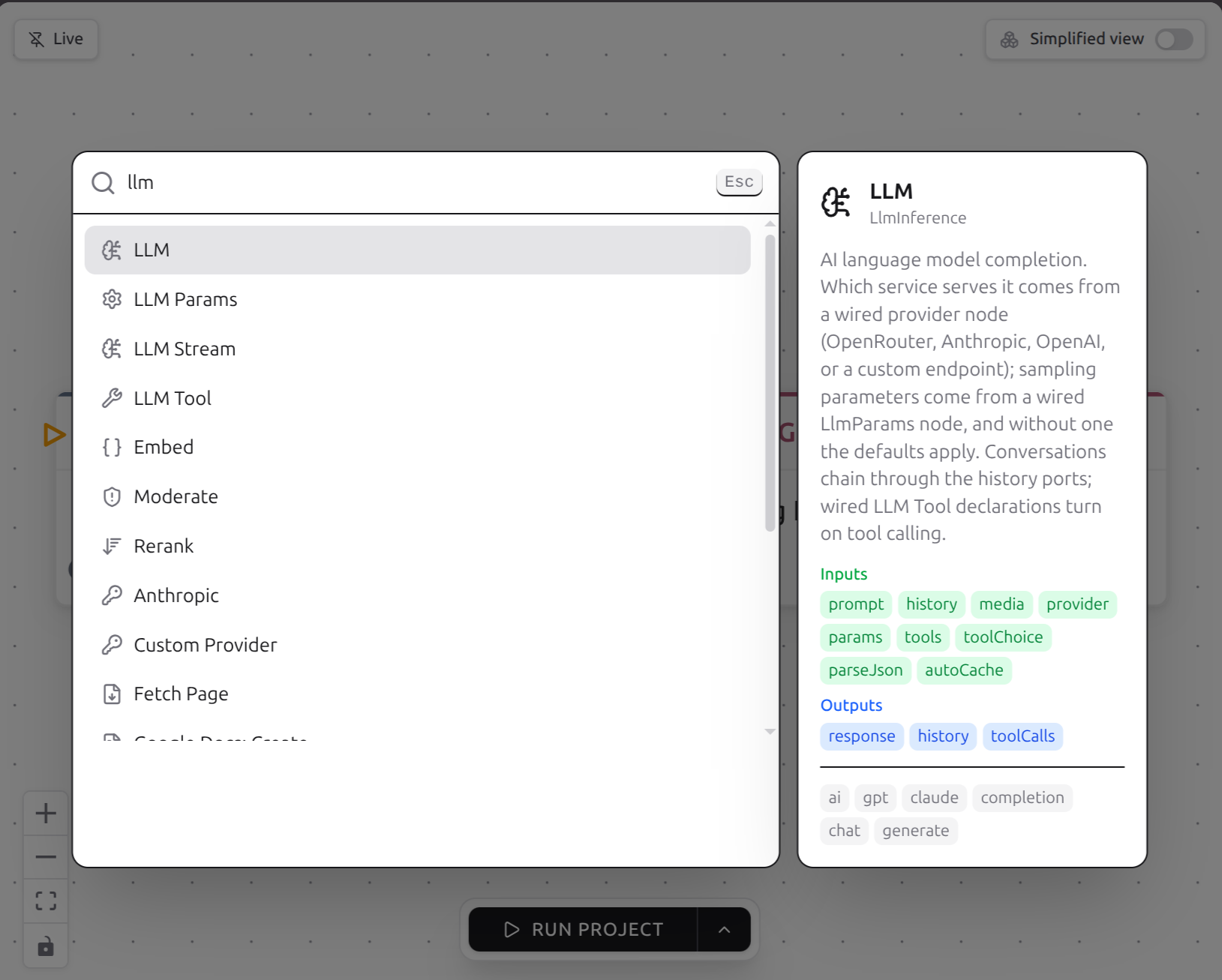

Press Ctrl+P (Cmd+P on a Mac) and search. Right-clicking empty canvas and picking Add Node… opens the same list.

The list holds every step your project knows about, and Group and Loop are in there with the rest, because a group is a kind of step.

It also holds the plain actions, so you can find them without remembering a chord: Undo, Redo, Duplicate Selected, Delete Selected, Select All Nodes, Fit View, and Auto Organize Layout, which tidies the whole canvas.

If you already know what should come next, drag out of a dot and let go over empty canvas. The list opens, and the step you pick arrives with the arrow already drawn. One Ctrl+Z takes away both.

Connect two steps

Drag from a dot on one box’s right edge to a dot on another box’s left edge. The line takes the colour of the dot it started from.

Three things will refuse the drop, and each tells you which:

• The types do not fit. Same colour is the quick check. The full rules are in Types.
• The two boxes are in different groups. A value crossing that line has to go through the group’s own dots. That is what a group is for.
• The input already has a value written into it. You get '<port>' is driven by a config assignment; unset it first to drive it with an edge. Clear the field, then draw the arrow.

To remove an arrow, grab it near one end and drop it on empty canvas.

To take one field out of a value instead of the whole thing, right-click the arrow. You get the keys inside it with their types, and clicking one narrows the arrow to that key. Up one level goes back and Read the whole value undoes it.

Change what a step does

The small arrow in a box’s header opens its body, where its fields are: text boxes, dropdowns, tickboxes, code editors, file pickers. A field fed by an arrow hides itself, because the arrow is now the source of that value.

Under the inputs there is a + input button, and + output under the outputs. A port you add starts with the type MustOverride, which is weft saying nobody has decided this yet, and the build stops until you do. Right-click the new dot and pick the Type: row to set it.

That same right-click menu makes an input required or optional, removes it, or puts a catalog port back the way it was.

Double-click a box’s name to rename it. Right-click a box for Duplicate, Delete, Tags…, Set as target and Run from here….

On an infra node, the same menu has One per member: each member of your program then gets their own copy of it, and it shows a per member badge. Share across members takes the mark off.

If you want each member to give their own value for a field (their account, their spreadsheet, their schedule), click the 👤 button beside the field’s name, or right-click the field and pick Let each member fill this (the same entry is on the right-click menu of the field’s input port). The field then shows Filled by each member instead of a control, and the node a filled per member badge. If you had already written a value, a member who gives none gets that one. Click 👤 again, or pick Stop letting each member fill this, and that value becomes the one value for everyone again, or the field goes back to empty if there was none. A field with a wire into it offers neither, because its value comes from the wire.

A box that reads from a per-member node or a member-filled field runs once for each member too, and shows a dashed per member (follows) badge. For what all of this means, go and read programs with members.

Run one branch instead of everything

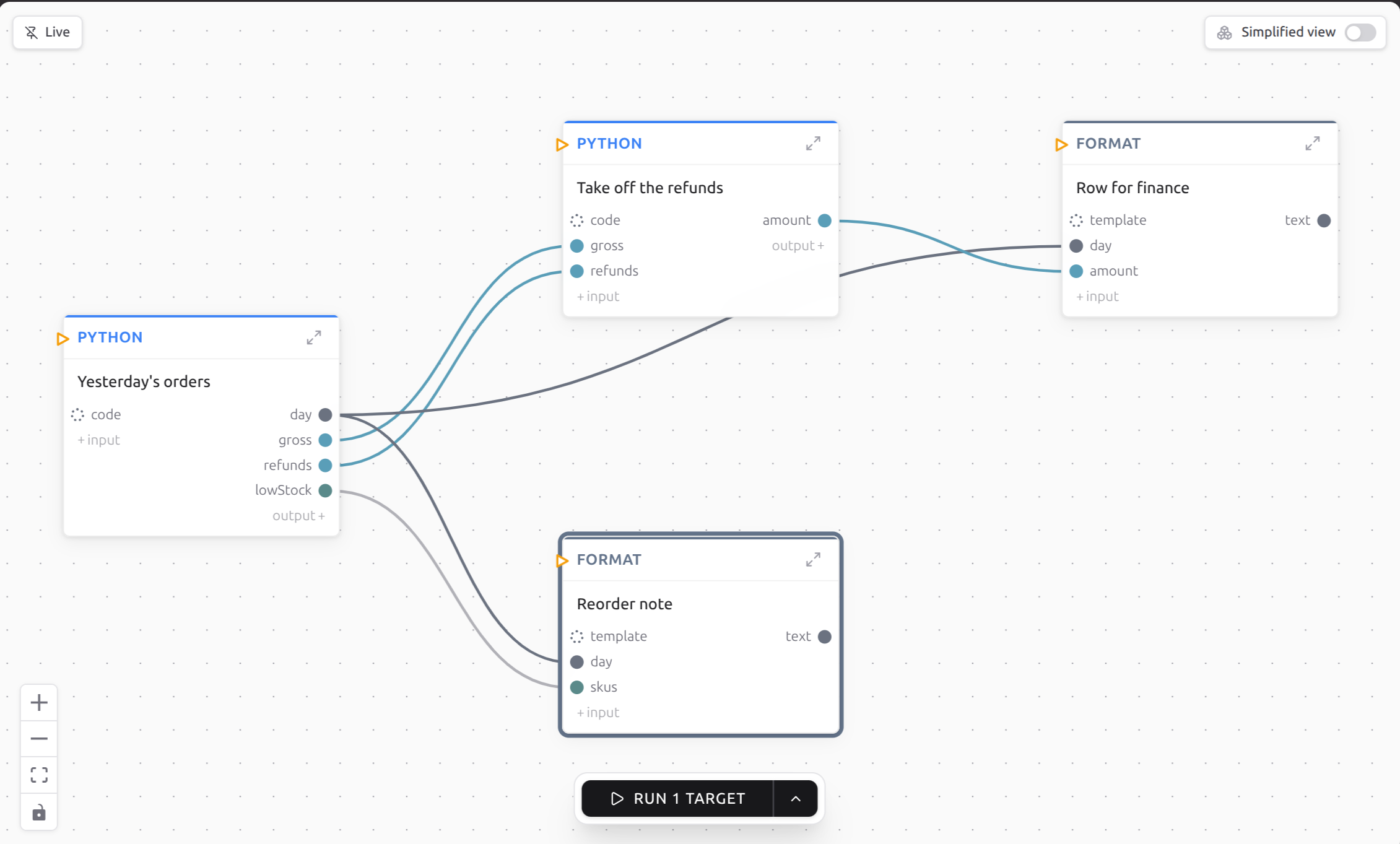

Right-click the box whose answer you want and choose Set as target. It gets a breathing ring, and the Run button becomes Run 1 target. Only that box and the boxes feeding it will run. Set as many as you like; right-clicking a target again offers Unset target.

The same thing from a terminal:

weft run --target daily_report

The walk stops when it reaches a trigger, and a box that two branches share does not drag the other branch in. A target inside a group brings only the work needed through it. A loop is the exception and comes along whole.

For anything more specific, the chevron glued to the Run button opens Run from a spec…, a dialog where you can start partway in with values you supply, exclude an endpoint, run one group on its own, fire a single trigger with a made-up event, or reuse what did not change since the last run. Right-clicking a box and choosing Run from here… opens the same dialog already filled in. Everything in there has a flag on the CLI, and the rules are in versions, seeds and frozen examples.

Watch it go

Run Project is at the bottom of the canvas, or press Ctrl+Enter with the graph focused. While a run is going, that button becomes Stop Execution. The bar follows what happens whoever started it: an infra start typed in a terminal, or asked for by Tangle, shows as Starting infra… on the infrastructure buttons, and an activation as Activating…, each with its Cancel, the same as clicking them.

Each box gets a glow and a small mark:

Click the magnifying glass in a box’s header, Inspect execution, for what went in, what came out, how long it took and what it cost. A failed box shows its error there. A skipped box says why in words, such as its _should_flow said no or the required input 'x' closed, and you follow the arrows backwards from there to find the step that decided.

A box that ran several times, which happens inside a loop, gets a ‹ 2/5 › in its header to step through the firings.

Look at an older run

The toggle at the top left decides which run the graph shows. Hover any of its three parts to see what it does:

• Following puts every run that starts on the graph. It is the default, and clicking Run in the editor always comes back to it.
• Locked keeps the graph on the run it shows, so you can read it while others start.
• Off takes the run away and leaves just the program.

While locked or off, runs that start are counted in a button beside the toggle, like 2 new runs · Follow, and clicking it shows the newest and follows again. A run started from a terminal, yours or an assistant’s, never changes the mode. Each project remembers whether you left it following.

For a run from yesterday, click the Weft icon in the side strip. Executions lists every run of the project you last opened, newest first, and each row has View in Graph, which puts that run back on the canvas with its values in place and locks the toggle onto it. A replayed run looks exactly like a live one.

Fold a big program down

Every group has Collapse group in its header, and Expand group when it is shut. The wiring outside does not change either way.

To make a group, add a Group step and drag boxes into it. weft decides where a box landed from its centre, so drag it until its middle is inside. To undo that, delete the group: every box inside climbs out one level and keeps its position.

Moving a box in or out of a group changes your program, because it changes what that box can reach. Dragging a box anywhere else does not: positions live in layouts/, beside your source, not in it.

To show your program to somebody, there is a Simplified view switch at the top right. Every box becomes a plain square with one dot on each side. You can still move boxes and fold groups, and you cannot wire anything, which is the point.

Next, connect an account.
